Price range: $499.79 through $533.45
With the high cost of labor and the need to turn trade shows quickly Georgia Expo Storage Carts provide the winning edge. Each cart is designed to reduce set up time and protect your investment. Made with rugged welded steel frames to provide years of dependable service. The casters are individually rated at 900 lbs. for a combined cart rating of at least 3600 lbs.

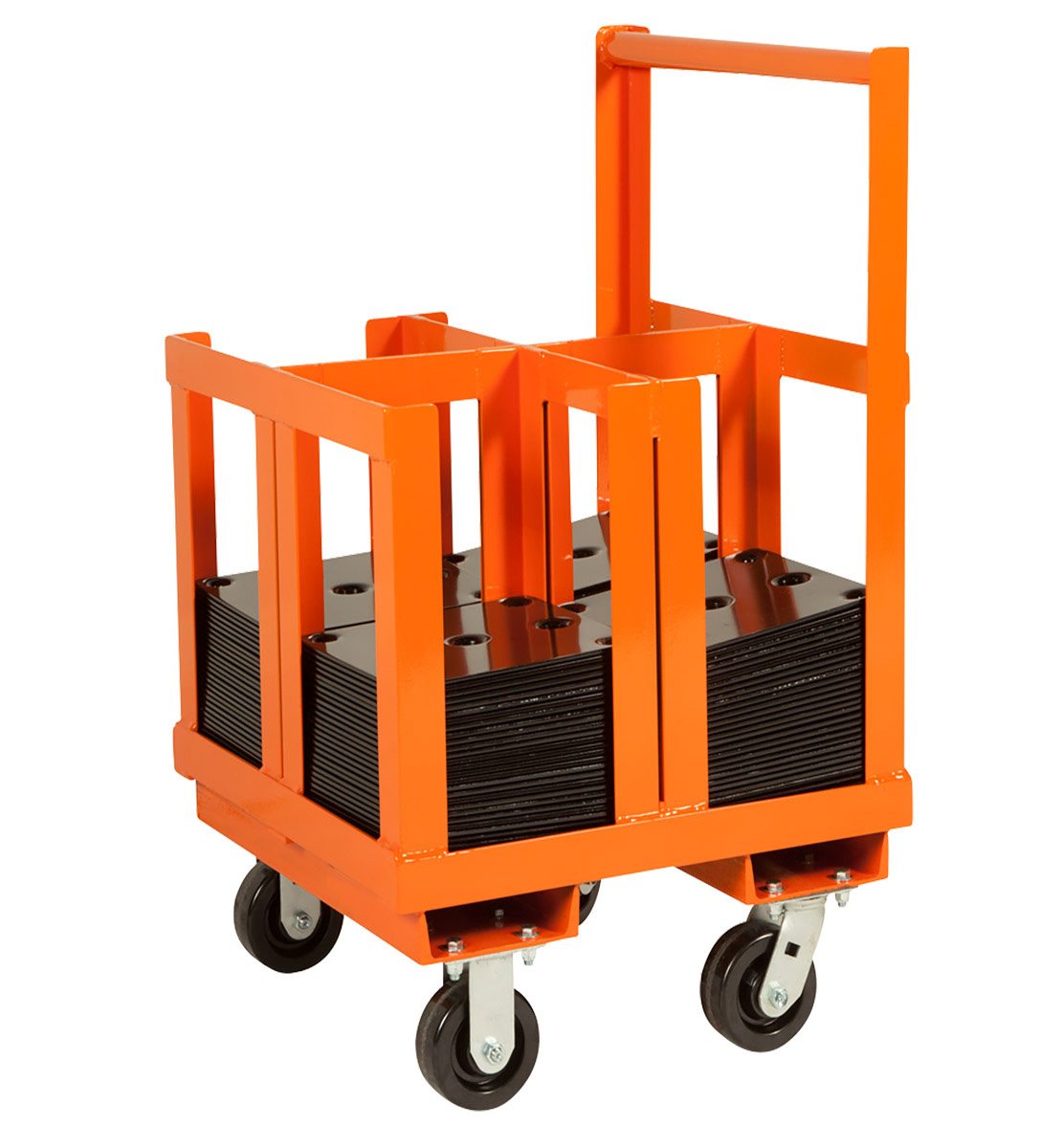

11” x 11”
Dimensions:
24”L x 25”W x 43”H casters installed)
Weight: 148lbs
Capacity:
We recommend no more than 1,000 lbs, do not overload – could cause tip over.
Materials:
Welded on site, rugged welded 2″ angle iron steel frame
Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from top of plate to top of wheel, plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately, must be installed
Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request
Other Info:
Do not overload this cart, could cause a tip over! Designed for up to 1000lbs of bases only. Also available for 9” or 12” pins, welded and powder-coated onsite, so customization to this standard design is available. Please contact a sales rep for more information and pricing. 1-800-433-9767
15” x 15”
Dimensions:
32”L x 16”W x 43”H casters installed)
Weight: 105lbs
Capacity:
We recommend no more than 1,000 lbs, do not overload – could cause tip over.
Materials:
Welded on site, rugged welded 2″ angle iron steel frame
Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from top of plate to top of wheel, plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately, must be installed
Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request
Other Info:
Do not overload this cart, could cause a tip over! Designed for up to 1000lbs of bases only. Also available for 9” or 12” pins, these are welded and powder-coated onsite, allowing for customization to this standard design. Please contact a sales rep for more information and pricing. 1-800-433-9767
18” x 18”
Dimensions:
19.5”L x 19.5”W x 39”H casters installed)
Weight: 162lbs
Capacity:
We recommend no more than 1,000 lbs, do not overload – could cause tip over.
Materials:
Welded on site, rugged welded 2″ angle iron steel frame
Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from top of plate to top of wheel, plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately, must be installed
Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request
Other Info:
Do not overload this cart, could cause a tip over! Designed for up to 1000lbs of bases only. Also available for 9” or 12” pins, these are welded and powder-coated onsite, allowing for customization to this standard design. Please contact a sales rep for more information and pricing. 1-800-433-9767
24” x 24”
Dimensions:
25.5”L x 25.5”W x 39”H casters installed)
Weight: 66lbs
Capacity:
We recommend no more than 1,000 lbs, do not overload – could cause tip over.
Materials:
Welded on site, rugged welded 2″ angle iron steel frame
Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from top of plate to top of wheel, plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately, must be installed
Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request
Other Info:
Do not overload this cart, could cause a tip over! Designed for up to 1000lbs of bases only. Also available for 9” or 12” pins, these are welded and powder-coated onsite, allowing for customization to this standard design. Please contact a sales rep for more information and pricing. 1-800-433-9767
*Note: If a lift gate is required, additional shipping charges may apply.
CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information: www.P65Warnings.ca.gov
Disclaimer: Pipe and Drape should never be used where tip-over could cause harm or damage.
